The Data Explorer

Main View for Analyzing and Managing Data

The Data Explorer is the primary interface for high-volume data inspection, refinement, and mutation. It is designed for desktop usage and optimized for wide tables, dense result sets, and multi-dimensional filtering.

The Data Explorer operates in two phases:

  1. Dataset construction – selecting a source table, related data, and classifications
  2. Client-side interaction – sorting, grouping, filtering, and editing executed entirely in the browser

Once a dataset is loaded, all transformations are applied locally, avoiding additional server roundtrips and enabling high-performance exploratory workflows.

The view is accessed from the main menu under Data Explorer.

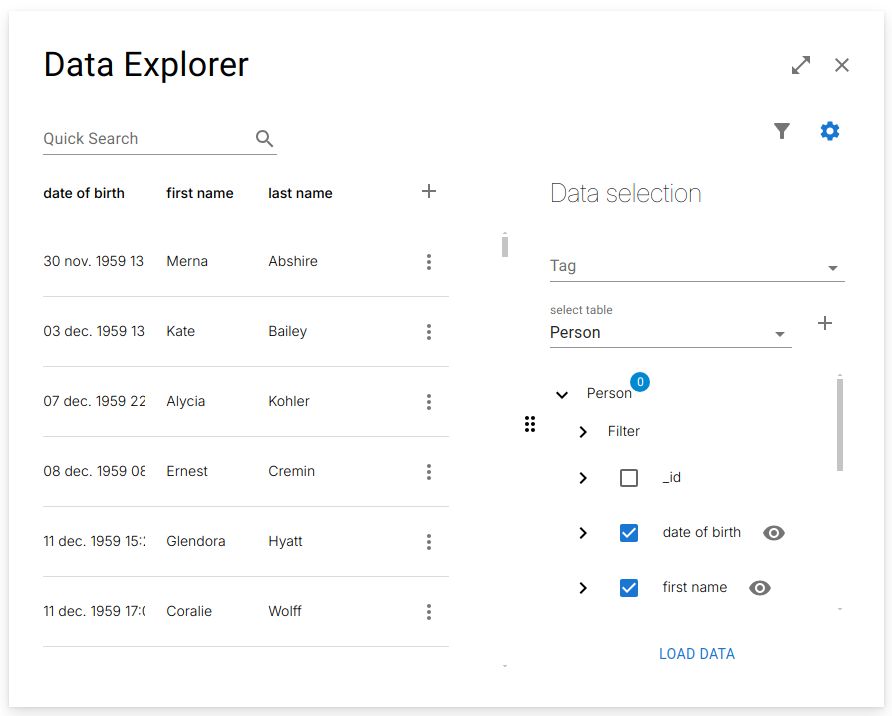

Selecting first name, last name, and date of birth from Person.

Selecting the Data

All datasets start from a source table, which defines:

  • The primary row identity
  • The root for all relation traversal
  • The default row scope for the dataset

In large schemas, the table list can be filtered by tags to limit the search domain (e.g. "CRM", "Finance", "Operations").

Once a source table is selected:

  • All non-system columns
  • The ID column

are automatically included in the dataset.

This provides a minimal, immediately usable working set without requiring manual column selection.

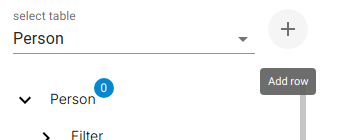

Adding New Rows

Each table node exposes a create action. Activating it opens a smart form bound to the source table schema.

The form is schema-driven and enforces:

  • Required fields
  • Data types
  • Write rules
  • Relation constraints

Filtering Rows

Each table node exposes a row filter control. This applies row-level predicates directly to the dataset.

These filters are independent of column filters and operate at the row selection phase.

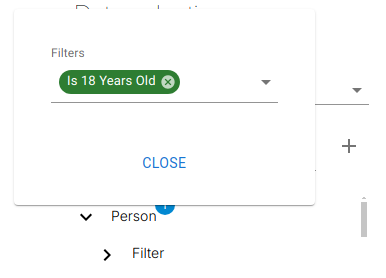

Adding Filters (Classifications)

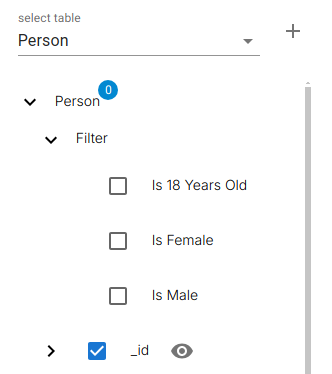

Below the source table, a Filters node exposes all classifications marked as usable filters.

When added, classifications behave as virtual columns and participate in filtering and grouping.

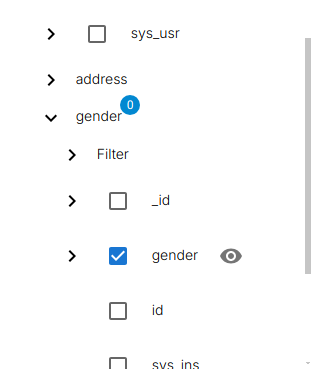

Exploring Relationships

All outbound relations from the source table appear as relation nodes (e.g. Address, Gender). These allow:

  • Inclusion of related table columns
  • Recursive traversal of deeper relations

Each added relation expands the dataset along the relational graph without changing the row identity of the source table.

Managing Column Visibility

Each selected column exposes a visibility toggle. Hidden columns:

  • Remain usable for filtering
  • Are excluded from the table rendering

This allows clean analytical layouts where helper columns participate in logic but not in presentation.

Working with Columns in the Table

The Data Explorer table supports structural manipulation of result sets through per-column controls.

Column Options

  • Sort

Ascending / descending ordering of the active row set.

  • Resize

Horizontal resizing of the column width.

  • Reorder

Drag-based repositioning of column order.

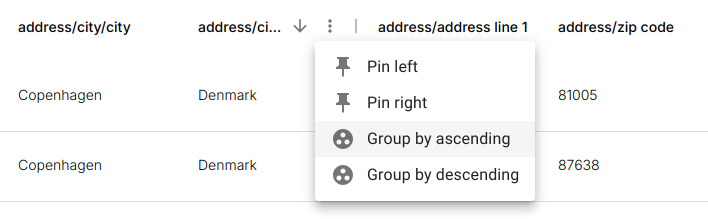

Column Settings Menu

  • Pin Left / Pin Right Fixes the column during horizontal scrolling.

  • Group Ascending / Descending Moves the column into the grouping layer and applies hierarchical aggregation.

Pinned columns remain fixed until explicitly unpinned.

Column Naming in the Table

To preserve origin clarity, column names follow strict naming rules:

  • Source table columns Use their native column name
first_name
  • Relation-derived columns Use path notation
<relation>/<column>

Example:

gender/gender
  • Classifications Appear as computed boolean fields
is_over_18

Viewing Full Column Names

When truncated due to width, hovering the header shows the full structural path.

Grouping Data

Grouping introduces hierarchical aggregation layers on top of the current dataset.

Activating Grouping

Grouping is applied per column via the column menu.

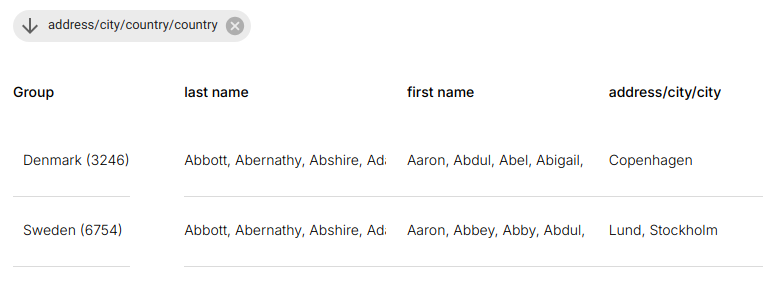

Grouping Representation

  • Active groupings appear as tags above the table
  • A grouping column is inserted at the leftmost position

Aggregation Rules

For each group:

  • Numeric fields → summed
  • String fields → concatenated (truncated)
  • Other types → row count

Managing Groupings

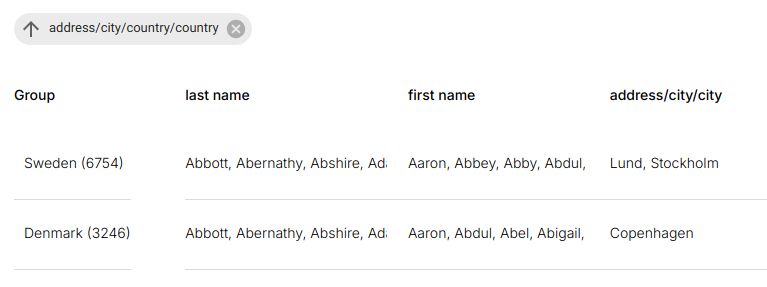

  • Change sort order

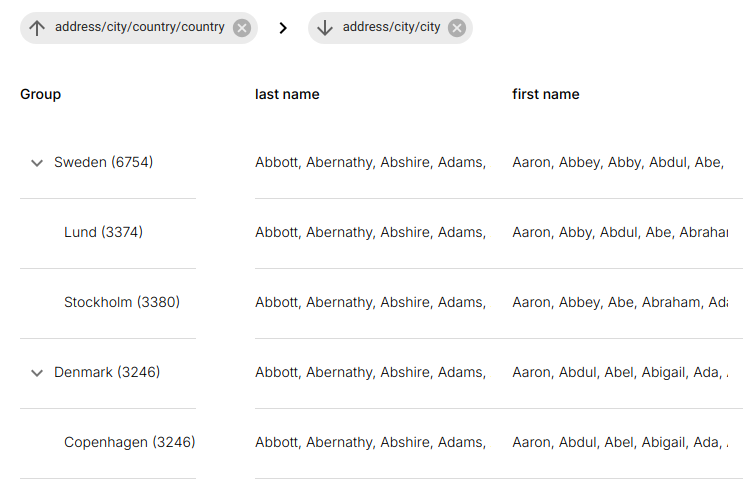

  • Multiple grouping levels

  • Remove grouping Removes the tag and restores flat row layout.

Filtering Data

Filtering is fully client-executed and operates independently per column.

Activating Filters

Filter Types

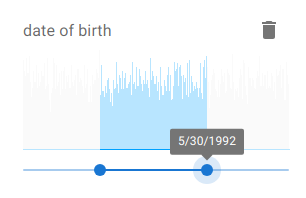

  • Date Columns → histogram-based range selection

  • High-cardinality Fields → text search

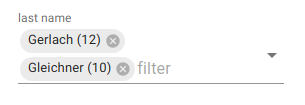

  • Low-cardinality Fields → searchable multi-select dropdown

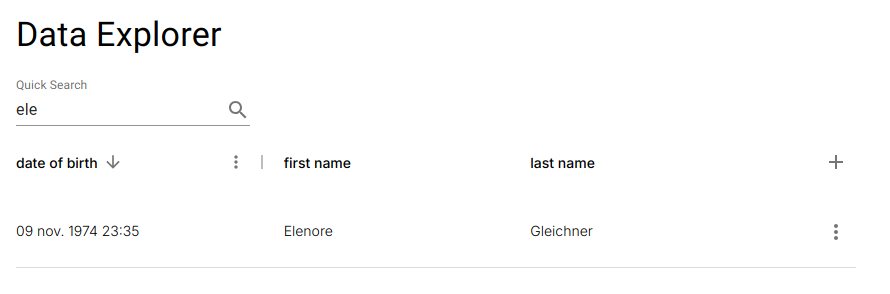

A global text search runs across all visible columns simultaneously.

Filtering Execution Model

All filters execute entirely in memory on the active dataset:

  • No network latency
  • No server recomputation
  • Instant feedback during exploration

Working with Data in the Table

Each row represents one physical record in the source table. A per-row operation menu is exposed.

Row Operations

  • Edit – Opens schema-bound update form
  • Delete – Executes row-level delete with confirmation
  • Open in Navigator – Opens record in the Data Navigator
  • View Change Log – Opens full audit history

Cells originating from related tables are editable directly:

  • Double-click opens the smart form bound to the target table
  • The relation itself remains unchanged unless explicitly modified

This enables direct mutation of dependent entities (e.g. Address, Gender) without leaving the current analytical context.
